Sealless Magnetic Drive Pumps

PTCXPUMP product feature

Stainless Steel Sealless Magnet Drive Pump

Metallic Stainless Steel for SUS316L

Sealless Magnet Drive Pump

General industry for transfer chemical,

capable with high temperature up to 280°C



Introduction

Environmental protection and user safety has been always the main focus of PTCXPUMP sealless magnetic drive pump product development. The design structure in form of non-seal with sealless, is mainly to solve the problem of VOCs leakage from mechanical seal pumps.

Feature

• Simple structure for easy maintenance.
• Non-seal for sealless design with leakage free feature.
• Anti-vortex design for internal flow channel.
• Interchangeable parts design, reducing the number of spare parts purchased.
• Standard material provides SUS316L, alloy20 and Has-C for optional selection.

Operating Range

• Max. Capacity up to 3200 L/m.
• Max. Head up to 140 m.
• Max. Viscosity up to 300 cp.
• Max. Specific Gravity up to 2.
• Motor output range from 0.09 kw ~ 110 kw.
• Temperature use range from minus 80 degree to 280 degree Celsius.
• Universal flange design applies with ANSI Class 150, JIS 10K and DIN PN16.
• Pump material with SUS316L(standard), Alloy20(optional), Has-C equivalent (Optional).

Pump Series Types

• Small, medium and large capacity.
• Regenerative turbine type for high head and low flow rate.
• Jacket type maintain temperature for process chemical.
• Open impeller for handling slurries and low NPSHr
• Multi-stage for two stage impellers, applied to high head and large flow rate.
• ISO2858 compliant with coupling type, motor power up to 110KW.

Application of chemicals

Acetaldehyde	Cyclohexane	Methanol
Acetic Acid	Ethanol	Methyl Ethyl Ketone
Acetone	Ethyl Alcohol	Nickel Sulphate
Aluminum Sulphate	Ethylene Glycol	Nitric Acid
Ammonia Water	Formalin	Phenol
Ammonium Oxalate	Freon	Pure Water
Benzene	Gasoline	Styrene
Butadiene	Hot oil, Hot Water	Acetaldehyde
Butyl Alcohol	Isopropyl Alcohol	Sulfuric Acid
Caustic Soda	Kerosene	Toluene
Chloroform	Maleic Acid	Xylene



Accessories

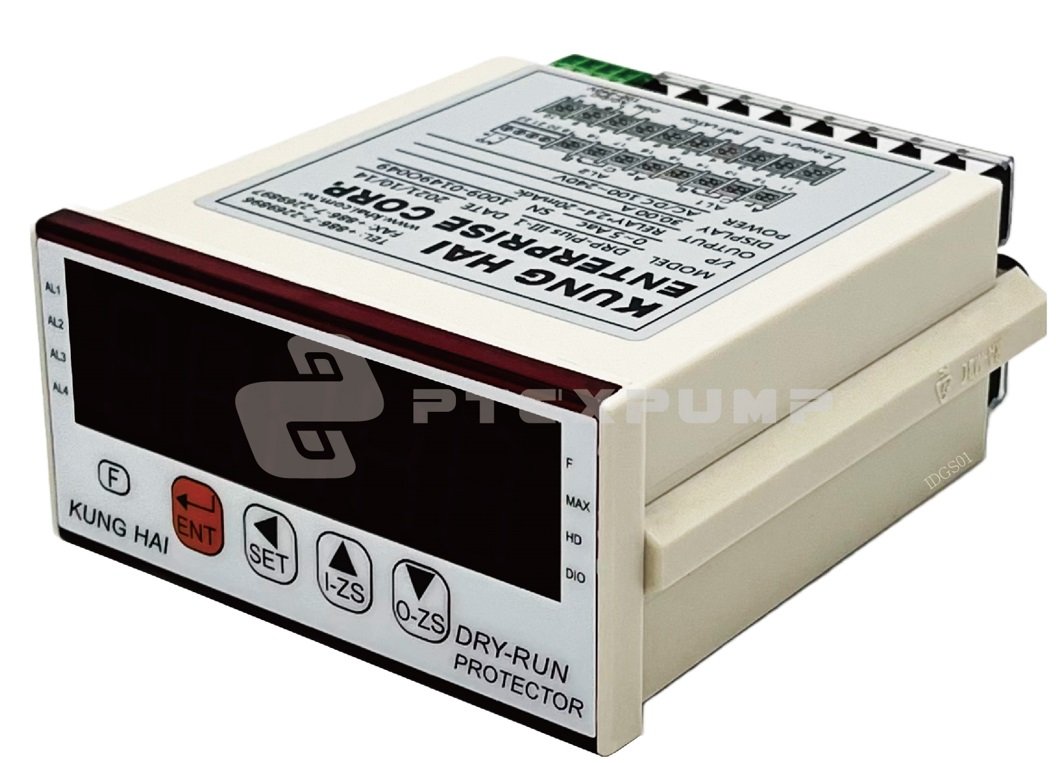

Pump Dry Run Protector



Dry Run Protector

Current and power type are available for selectio,

To prevent the pump failure during abnormal

operating or dry running



Introduction

It is important to ensure pump runs well and avoid dry running. It is important to install a dry running protection device which main function is to monitor the current or power of the pump during operation. As soon as the operating current or use of electricity is beyond the setting range, the device will stop the pump immediately to prevent the motor from overload or dry running, which is to avoid pump failure and costly production downtime.



Feature

• To provide current and power type for selection.

• To protect the pump during abnormal operation.

• To prevent motor overloading or underloading.

• To prevent pump dry running for long time.

• Compact size for easy setup and install.
